吸附组件

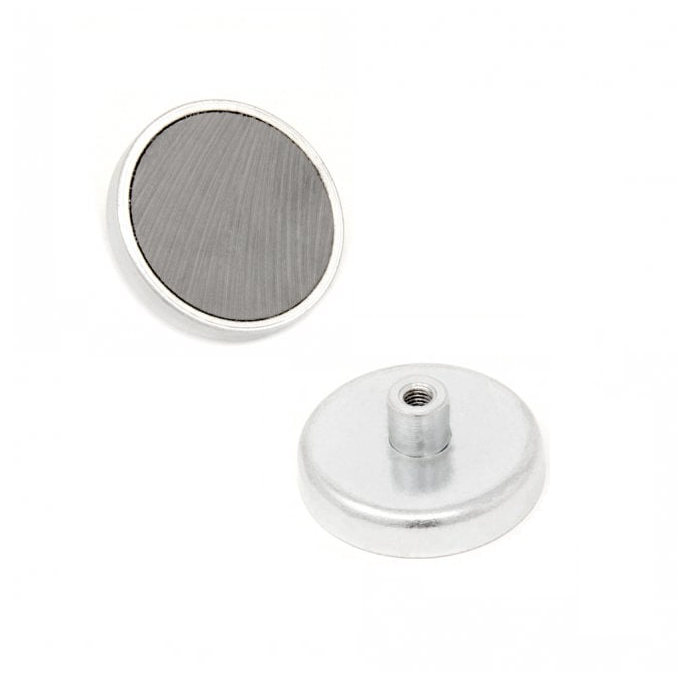

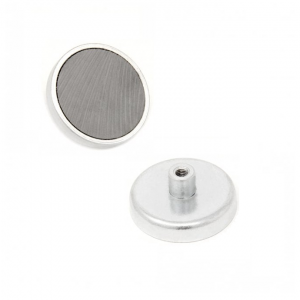

外螺纹磁扣
|
型号 |
D |
H |
h |
M |
吸力 |
|
mm |
mm |
mm |
mm |
Kgf |
|
|
HMN01-10 |
10 |
12.5 |
5 |
M3 |
2 |
|
HMN01-12 |
12 |
12.5 |
5 |
M4 |
4 |
|
HMN01-13 |
13 |
12.5 |
5 |
M5 |
4 |
|
HMN01-16 |
16 |
12.5 |
5 |
M5 |
6 |
|
HMN01-20 |
20 |
16 |
7 |
M5 |
10 |
|
HMN01-25 |
25 |
17 |
7 |
M5 |
27 |
|
HMN01-30 |
30 |
18.5 |
8 |
M6 |
30 |
|
HMN01-32 |
32 |
18 |
8 |
M6 |
35 |
|
HMN01-36 |
36 |
18 |
8 |
M6 |
45 |
|
HMN01-42 |
42 |
18 |
9 |
M6 |
70 |
|
HMN01-48 |
48 |
24 |
11 |
M8 |
81 |
|
HMN01-60 |
60 |
35 |
15 |
M8 |
160 |
|
HMN01-75 |
75 |
40 |
18 |
M10 |
250 |

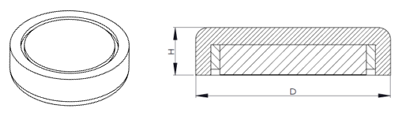

无孔磁扣
|
型号 |
D |
H |
吸力 |
|
mm |
mm |
Kgf |
|
|
HMN05-10 |
10 |
5 |
2 |
|
HMN05-12 |
12 |
5 |
4 |
|
HMN05-16 |
16 |
5 |
8 |
|
HMN05-18 |
18 |
6 |
8 |
|
HMN05-20 |
20 |
7 |
12 |
|
HMN05-25 |
25 |
8 |
23 |
|
HMN05-30 |
30 |
8 |
25 |
|
HMN05-32 |
32 |
8 |
34 |
|
HMN05-36 |
36 |
8 |
50 |
|
HMN05-42 |
42 |
9 |
70 |
|
HMN05-45 |
45 |
9 |
75 |
|
HMN05-60 |
60 |
15 |
160 |

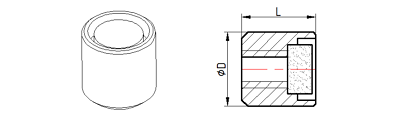

半螺纹孔磁扣（钐钴）
|
型号 |
D |
L |
吸力 |
|
mm |
mm |
Kgf |
|
|
HMS03-6 |
6 |
6 |
0.3 |
|
HMS03-8 |
8 |
6 |
0.4 |
|
HMS03-10 |
10 |
6 |
1.0 |
|
HMS03-13 |
13 |
8 |
3.0 |
|
HMS03-16 |
16 |
8 |
5.0 |
|
HMS03-20 |
20 |
10 |
9.0 |
|
HMS03-25 |
25 |
13 |
13.0 |

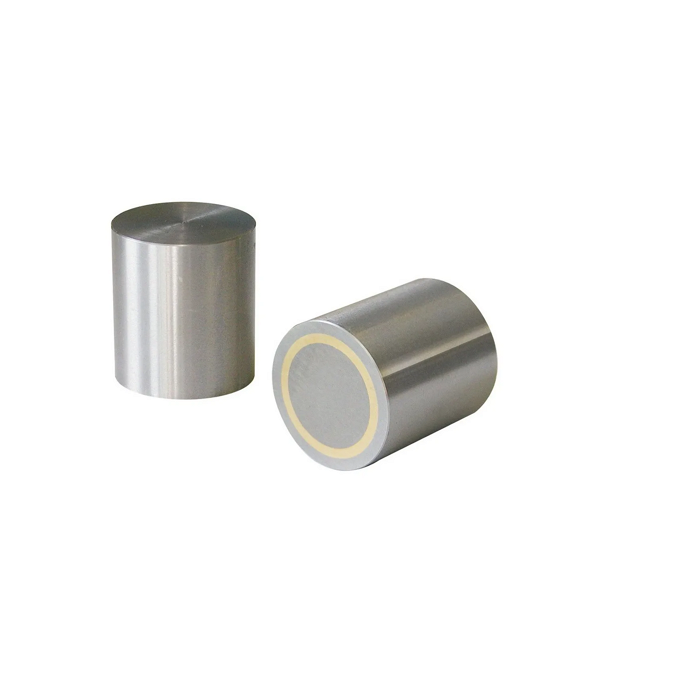

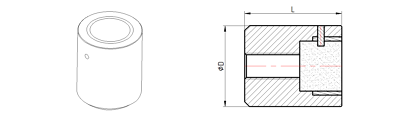

半螺纹孔磁扣（铝镍钴）
|
型号 |
D |
L |
吸力 |
|
mm |
mm |
Kgf |
|
|
HMA03-10 |
10 |
15 |
0.6 |
|
HMA03-13 |
13 |
15 |
1.2 |
|
HMA03-16 |
16 |
20 |
1.6 |
|
HMA03-20 |
20 |
25 |
3.0 |
|
HMA03-25 |
25 |
30 |
4.5 |
|
HMA03-28 |
28 |
30 |
8.0 |

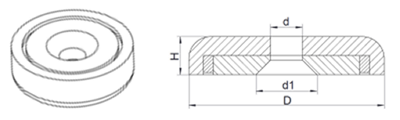

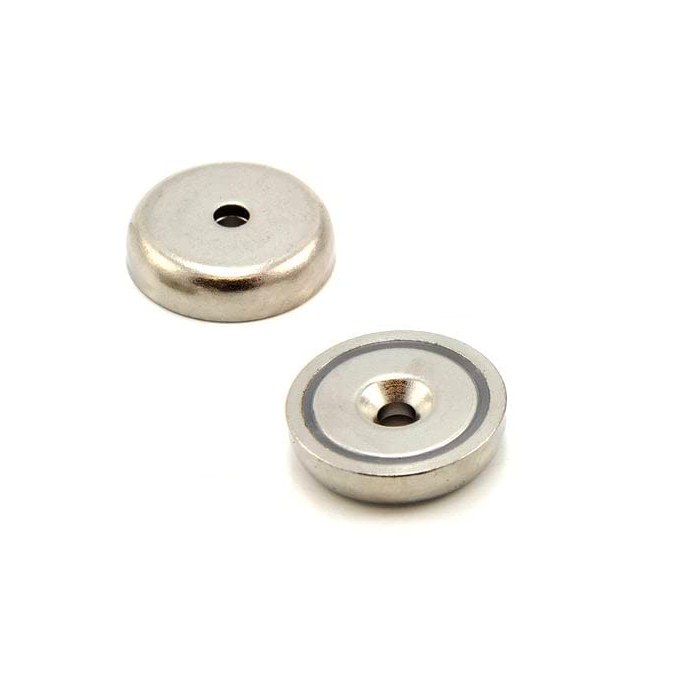

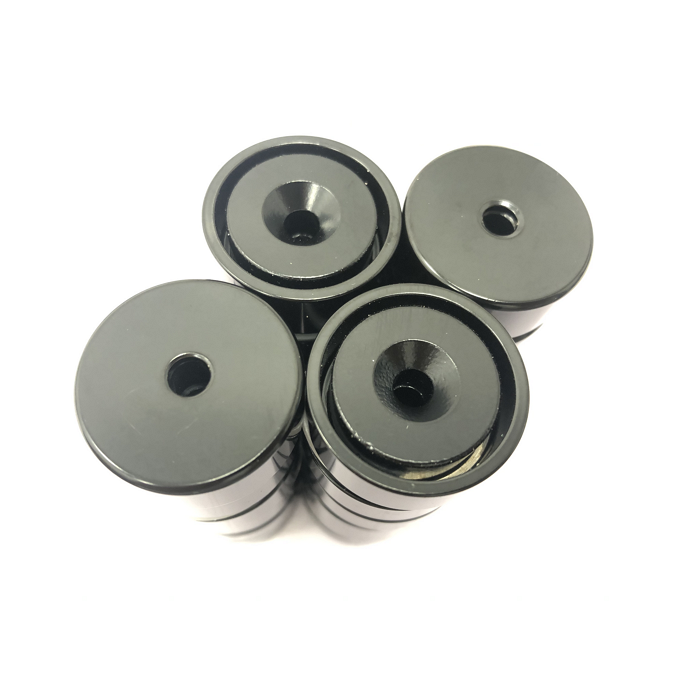

沉头孔磁扣
|
型号 |
D |
d |
d1 |
H |
吸力 |
|
mm |
mm |
mm |
mm |
Kgf |
|
|
HMN04-13 |
13 |
3.5 |
6.5 |
4.5 |
2.5 |
|
HMN04-14 |
14 |
4.5 |
7.5 |
6 |
3 |
|
HMN04-15 |
15 |
4.8 |
7.5 |
6 |
3.5 |
|
HMN04-16 |
16 |
3.5 |
8 |
4.5 |
5.5 |
|
HMN04-20 |
20 |
3.2 |
8.5 |
4.8 |
9.5 |
|
HMN04-25 |
25 |
4.5 |
10.5 |
7 |
17 |
|
HMN04-28 |
28 |
4.5 |
10.5 |
7 |
28 |
|
HMN04-32 |
32 |
5.5 |
10.5 |
7 |
32 |
|
HMN04-36 |
36 |
6.5 |
11 |
8 |
43 |
|
HMN04-38 |
38 |
6.5 |
11 |
10 |
50 |
|
HMN04-40 |
40 |
6.5 |
11.5 |
10 |
50 |
|
HMN04-42 |
42 |
6.5 |
11.5 |
10 |
65 |

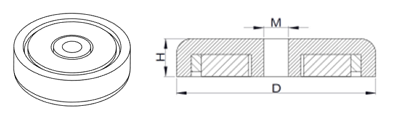

螺纹孔磁扣
|
型号 |
D |
H |
M |
吸力 |
|
mm |
mm |
|
Kgf |
|
|
HMN09-16 |
16 |
5 |
M3 |
4 |
|
HMN09-20 |
20 |
7 |
M4 |
8 |
|
HMN09-25 |
25 |
7.5 |
M5 |
18 |
|
HMN09-32 |
32 |
7.5 |
M5 |
30 |
|
HMN09-36 |
36 |
8 |
M6 |
35 |
|
HMN09-42 |
42 |
8 |
M6 |
50 |
|
HMN09-48 |
48 |
10 |
M8 |
70 |
|
HMN09-60 |
60 |
12 |
M8 |
125 |
|
HMN09-75 |
75 |
15 |
M10 |
210 |
我们可以根据客户的要求，从咨询，设计，打样到批量生产，提供全流程定制化服务。
